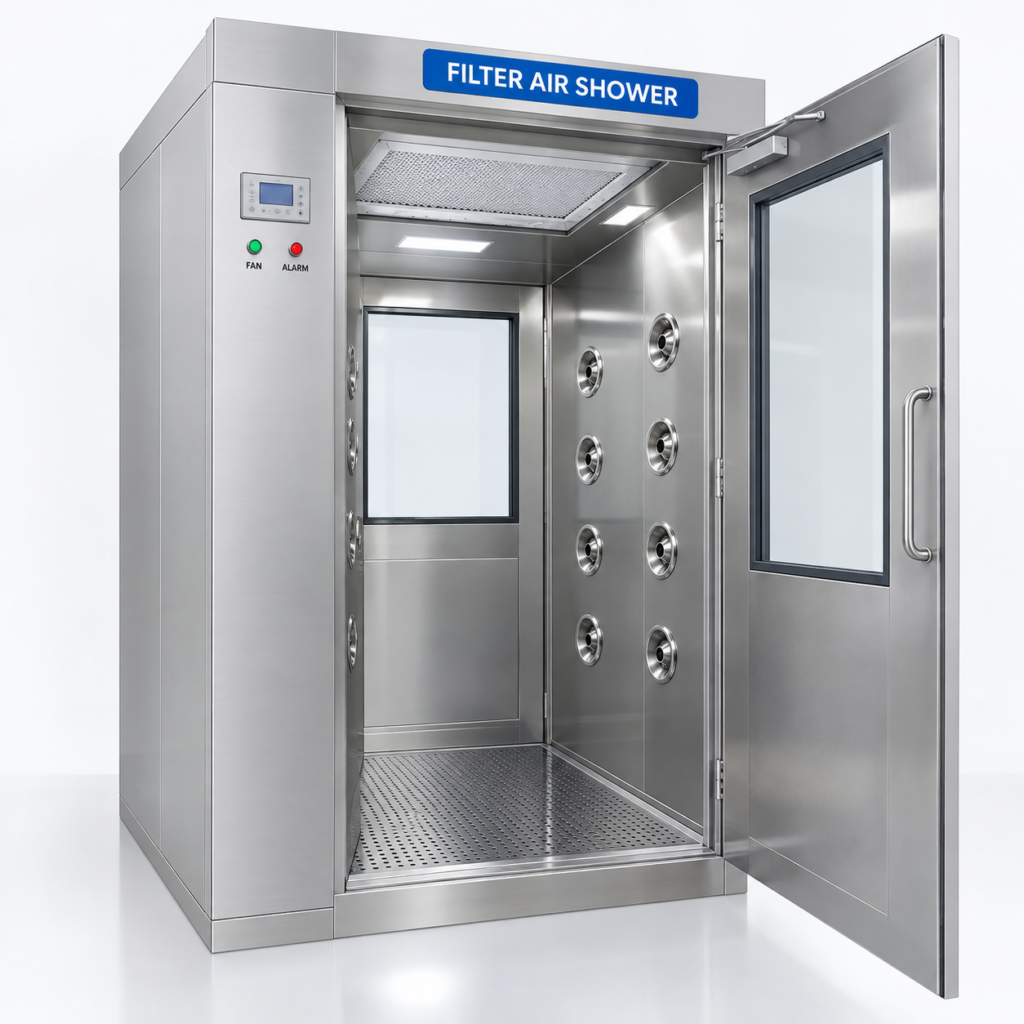

Filter Air Shower

What is an Air shower?

Air Shower is a self contained well built factory assembled designed to deliver a spray of moving air from nozzles transported and virtually can be installed at any site. Absolute filter-fan module provide positive pressurization and filtration down to 99.97% efficiency on 0.3 micron. The Clean Air inside the Shower will support a very high degree of sterility and clean air condition.The system is supplied with optionally aluminium grated floor located approximately 6 inches above datum level. Duct air chassis are installed within the walls of the units. While the system is in operation, both doors will get automatically locked. In case of power failure or an emergency, the doors get unlocked. Construction is of Mild Steel Powder coated / Stainless Steel 304 grade. Provided with two aluminium framed acrylic / glass door with automatic locking device. Statically/dynamically balanced, blower draws the air through pre-filters and throws it through HEPA filter into the chamber. Suitable to work on 220V, 1 phase 50 Hz, AC supply

Air Shower working

Air showers operate similarly to automated car wash pressure washer systems, utilizing multiple steps throughout the decontamination process. The following Air Shower cleanroom specifications process details the operational aspects of a cleanroom air shower.

1. The worker passes through the entry door and a sensor activates interlock magnets, which lock the air shower and cleanroom doors.

2. Numerous adjustable nozzles blow high-velocity streams of Class 100 filtered air onto the worker.

3. The high-velocity air creates a flapping effect on clothing which produces a scrubbing action, removing particulates from cleanroom garments.

4. To ensure all particulates are removed, workers raise their arms and rotate in place.

5. Indicator lights signal the end of the cleaning cycle, and the cleanroom door opens.

Additionally, it takes four to eight seconds of cleaning time and another two to four seconds for the air shower to purge contaminated air before the worker can exit. Computerized microprocessors control the cleaning and wait times associated with the air shower decontamination process.

Cleanroom Air Shower Tunnels Prevent Contamination between Cleanrooms

Cleanroom air showers can be integrated to create self-cleaning air shower tunnels for environments where two or more cleanrooms are being utilized. Cleanroom air shower tunnels effectively remove particles as personnel and products travel between cleanrooms, significantly reducing the risk of contamination between work areas that have different ISO ratings. Up to five Cleanroom Air Showers can be combined based on your requirements.

Air Shower Design considerations

Modular Clean Room Air Shower designs and configurations accommodate specific requirements for industry, as well as the number of personnel using the cleanroom. Modular cleanroom entry systems also simplify shipping and assembly.

Utilizing a 90-degree design, users enter on one side and exit to the right or left at a 90-degree angle. This allows the Air Shower, with nozzles on two opposing walls cleans workers with ease. In This configuration has fewer air nozzles than the straight-through design and requires the worker to turn 360 degrees to ensure that they’ve been thoroughly cleansed. Other designs may have double doors or even three doors for entry and exit. Configurations include cart/parts-cleaning air showers, which are used for carts, conveyors, pallets and continuous-part operation. Low-profile air showers accommodate facilities with ceilings less than 96 inches. ADA air showers are sized so a wheelchair can turn around in the air shower.

The number of persons that need to enter your cleanroom in each amount of time will have a major impact on the size of the air shower and filtration system that is required. Designs range from single batch systems where one person uses the shower at a time, to tunnel systems for larger groups to pass through quickly.Air Shower Tunnels are becoming more common because of the amount of cycle time needed for a shift change.

Doors

Like air locks, air showers have entrance and exit doors that cannot be opened at the same time. Workers enter one side and exit on the opposite side. When one door opens, the other door’s magnet energizes, preventing it from opening. During the cleaning cycle, both doors are energized (locked) to prevent anyone entering or leaving before the cycle is completed.

Materials

High-quality air shower shells are constructed of steel and painted with a strong, durable cleanroom-compatible finish. For some medical, pharmaceutical, or extremely wet environments, stainless steel construction is ideal.

Some manufacturers offer economy units made of laminated particleboard. However, this option has major weaknesses, including temperature and humidity fluctuations that can cause delamination. The materials are also easy to damage and susceptible to joint loosening. Any of these conditions may generate particulate or biological contamination.

Air shower for clean room

Accumax India design,fabricate and install air shower for clean room personnel. These clean room air showers are especially used in different kinds of industries including pharmaceutical industries and animal facilities; where they act as entry systems that decontaminate personnel before entering into clean environment. Our engineering team carefully designs and configures an air shower that meets your specific working conditions. Tunnel and conveyor type units are also constructed for carts, equipment and cargo etc.

We in-house construct Air Shower machine; therefore, we offer our customers facility to order according to their specific requirements. Our Clean room air showers are available in different design configurations and material of construction. Our air shower prices are competitive, quality is unmatched and each unit is covered with excellent warranty terms.

Air showers are one of most demanding arrangements in most of the industries; where, removing fine particles attached to persons and products is mandatory. Such industries are: animal facilities, pharmaceutical, chemical research lab, electronics and semi-conductor, optical and aerospace etc.

Air shower Specifications

1	Dimensions	WxDxH : 900x1000x2000 mm (Inner Area) WxDxH: 1400x1075x2150 mm (Outer Area) Or Customized
2	MOC	Galvanized Iron Powder Coated / Stainless Steel 304
3	Blower Assembly	Dynamically And Statically Balanced Motors And Blowers
4	Motor	Make Eyaani
5	Nozzles	Made Of Stainless Steel Rotating And Adjustable Fixed Either Side Of Wall And Top Ceiling Velocity 70 Meters/Sec
6	Blower CFM	25-30 Meters/Sec
7	Face Velocity	20-22 Meters/Sec (3937-4330 FPM)
8	Air Flow	20-22 Meters/Sec (3937-4330 FPM)
9	Class	10000
10	Interlocking of Doors	Interlocking Facility Of Doors, One Door Lock Automatically When Other Is Opened With Electromagnetic Lock, With Timer Setting
11	Flooring	Aluminium Checker Sheet Anti Skid Or Stainless Steel
12	Door	Frame Made Of Stainless Steel / Galvanized Iron Powder Coated Interlocking Facility, Half Toughened Glass
13	Hingle, handle	Make Harrison/Godrej Or Equivalent
14	Light	LED
15	Prefilter	Washable Prefilter Down To 10 Microns, Particulate At An Efficiency Of 90% Duly Tested
16	Hepa Filters	With 0.3 Microns Particulate Of 99.978% Efficiency And DOP Tested, Frame Of Aluminium, Microfiber Glass Media Epoxy Sealed, Non Washable
17	Operations	Automatic Actuation Operation And Adjustable Timer Trough Microprocessor Based Controller
18	Noise Level	Less Than 75 Db
19	Safety	Emergency Switch In Chamber
20	Electric Supply	Work On 220v AC 1 Phase Or 3 Phase (To Specify)

Inner Size: (W X D X H)

900 x 1000 x 2000mm (2 Persons)
900 x 1500 x 2000mm (3 Persons)
900 x 2000 x 2000mm (4 Persons)
900 x 2500 x 2000mm (5 Persons)
900 x 3000 x 2000mm (6 Persons)
900 x 3500 x 2000mm (7 Persons)
900 x 4000 x 2000mm (8 Persons)
900 x 4500 x 2000mm (9 Persons)
900 x 5000 x 2000mm (10 Persons)

Features

Interlocking Doors Prevent Unnecessary Contamination Inflow And Thereby Prevent Cross-Contamination Of The Clean Room And The Air Shower. A Power Failure Safety Feature Automatically Releases The Doors In The Event Of A Power Failure To For Operator Safety. LED Lighting Built Fitted Into The Ceiling. In Addition, An Emergency Stop Button Is Fitted In Air Shower Chamber Which Releases The Door Lock For Exiting.

Leading clean room air shower manufacturer in India and all over the world

Accumax India is a leading clean room Air Shower manufacturers in India and all over the world.Get clean room air shower price from Accumax India.We are a renowned company which is known for high quality air showers and also after sales services.

Air Shower in Pharmaceutical industry

The purpose of setting up air shower system is to control the risk of spreading contaminants in the cleanroom environment by removing particulate matter on the personnel by throwing class 100 airflow. The air shower machine throws high velocity HEPA filtered air through jet nozzles which removes particulate matter (includes solid and liquid particles suspend in air and some of them are hazardous in nature). The contaminated air is again filtered and re-circulated. With-in seconds, the person entering into air shower comes out entirely cleans i.e. free from harmful dust. Electronics and Pharmaceutical productions are some of areas where air showers are extensively used.
Accumax India is an ISO and CE certified Air Shower manufacturers in India. We have in house facility of design, construction and installation of air shower entry systems for laboratories, clean rooms and manufacturing areas etc. These systems are carefully constructed at our factory, tested at various parameters then dispatched to the client's site. Our air shower cabinets are designed with corrosion resistant materials (Stainless steel or powder coated MS), fitted with easy to use controls and safety arrangements; filters are easily replaceable whenever needed.

Air shower clean room design

Applications

Air Showers have different type of applications. Clean Room Air Shower is used in pharma production, clean room ,micro- electronic fabrications and production units,Semi-conductor production lines, basic and applied science research laboratories,to detect the acidity or alkalinity of the solution.

Testing

As a leading Air Shower manufacturers,We conduct rigorous test for all of our Air Showers. The testing goes on in many phases to check out possible loopholes in functioning and technology framework.The testing phase also involves complying with the certifications for safety and OHS as per the needs of the industry.As a leading Air shower supplier We also conduct customer needs and industry-specific certifications that help you in providing a fool proof and cleaner room in the area.

Air Shower Efficiency Testing

Accumax India is a big brand in the industry to validate the efficiency of our air showers using the body box test, a method pioneered by Accumax India .

New clean room garments without laundry processing, which have residual particulate contamination from manufacturing in a non-clean room environment, are used.
The operator gowns up (in a jumpsuit, booties, gloves, mask and hood), and enters a specially sealed enclosure (the body box). This enclosure is equipped with vertical laminar flow.
The operator performs a series of standardized physical movements in order to induce the generation of particles in the body box, for a specific duration.
A particle counter connected to the base of the body box measures particle count levels. This count is the baseline level.
The operator gowns up using another garment from the same batch.
The operator proceeds into the Air Shower (device under test), for a shower cycle.
The operator exits the air shower and proceeds into the body box. In the body box the operator performs the same series of standardized physical movements in order to induce the generation of particles in the body box, for a specific duration
Particle count levels are measured, and compared against the baseline. The overall effectiveness of the air shower under test and shower cycle is calculated. Shower cleaning efficacy at various particle sizes is also characterized.
The test is repeated multiple times, to put together sufficient data and eliminate any bias. Exposure Time In Air Shower (SEC) Exposure Time In Air Shower (SEC)

How much does an Air shower cost

The cost of an Air shower would depend on the number of persons taking shower in one go.Accumax India manufactures Air Shower according to the need of customer.Get Air Shower price and technical specifications from Accumax India.
