Cleanroom Equipment

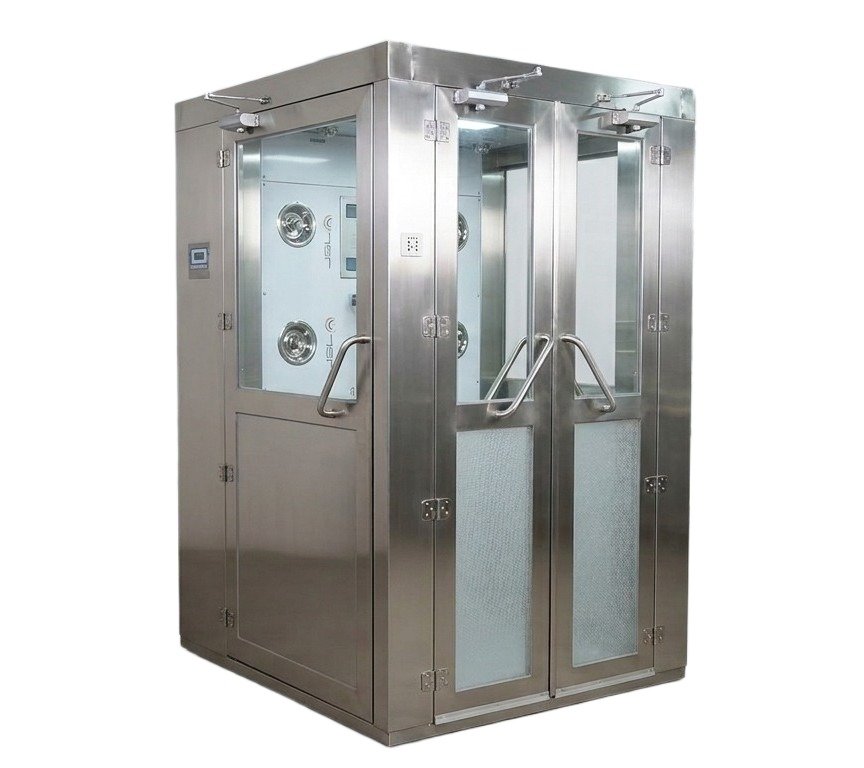

L-Shape
L-Shape Air Shower systems are designed to minimize
contamination by removing dust particles from personnel before
entering cleanroom environments. These systems ensure superior
cleanliness standards for pharmaceutical, electronics, food,
and laboratory applications.
Product Overview
High-performance contamination control system
Accumax India L-Shape Air Shower units are engineered with precision to maintain cleanroom integrity and reduce contamination risks. The system uses high velocity filtered air jets to effectively remove dust and particulate matter from personnel before entering controlled environments.
Manufactured using premium grade stainless steel and advanced HEPA filtration technology, our air shower systems deliver reliable performance, operational efficiency, and long-term durability across various industrial applications.
Technical Details
Product Specifications
Dimensions
WxDxH: 900x1000x2000 mm (Inner Area)
WxDxH:1400x1075x2150 mm (Outer Area) Or Customized
MOC
Galvanized Iron Powder Coated / Stainless Steel 30 Blower Assembly
Motor
Make Eyaani
Nozzles
Made Of Stainless Steel Rotating And Adjustable Fixed Either Side Of Wall And Top Ceiling Velocity 70 Meters/Sec
Blower CFM
25-30 Meters/Sec
Face Velocity
20-22 Meters/Sec (3937-4330 FPM)
Air Flow
20-22 Meters/Sec (3937-4330 FPM)
Class
10000
Interlocking of Doors
Interlocking Facility Of Doors, One Door Lock Automatically When Other Is Opened With Electromagnetic Lock, With Timer Setting
Flooring
Aluminium Checker Sheet Anti Skid Or Stainless Steel Door Frame Made Of Stainless Steel / Galvanized Iron Powder Coated Interlocking Facility, Half Toughened Glass
Hingle, handle
Make Harrison/Godrej Or Equivalent
Light
LED
Prefilter
Washable Prefilter Down To 10 Microns, Particulate At An Efficiency Of 90% Duly Tested
Hepa Filters
With 0.3 Microns Particulate Of 99.978?ficiency And DOP Tested, Frame Of Aluminium, Microfiber Glass Media Epoxy Sealed, Non Washable
Operations
Automatic Actuation Operation And Adjustable Timer Trough Microprocessor Based Controller
Noise Level
Less Than 75 Db
Safety
Emergency Switch In Chamber
Electric Supply
Work On 220v AC 1 Phase Or 3 Phase (To Specify)
Features
Key Features
- High efficiency HEPA filtration system
- Microprocessor based control panel
- Automatic sensor-based operation
- Stainless steel durable construction
- Low noise and energy efficient performance
- Emergency stop and safety interlocking
Applications
Industry Applications
- Pharmaceutical industries
- Electronics manufacturing units
- Food processing facilities
- Research laboratories
- Biotechnology industries
- Cleanroom environments
