Cleanroom Equipment
Horizontal
Horizontal Laminar Air Flow Cabinets are designed
to provide sterile particle-free airflow for
laboratories and cleanroom environments.
Product Overview

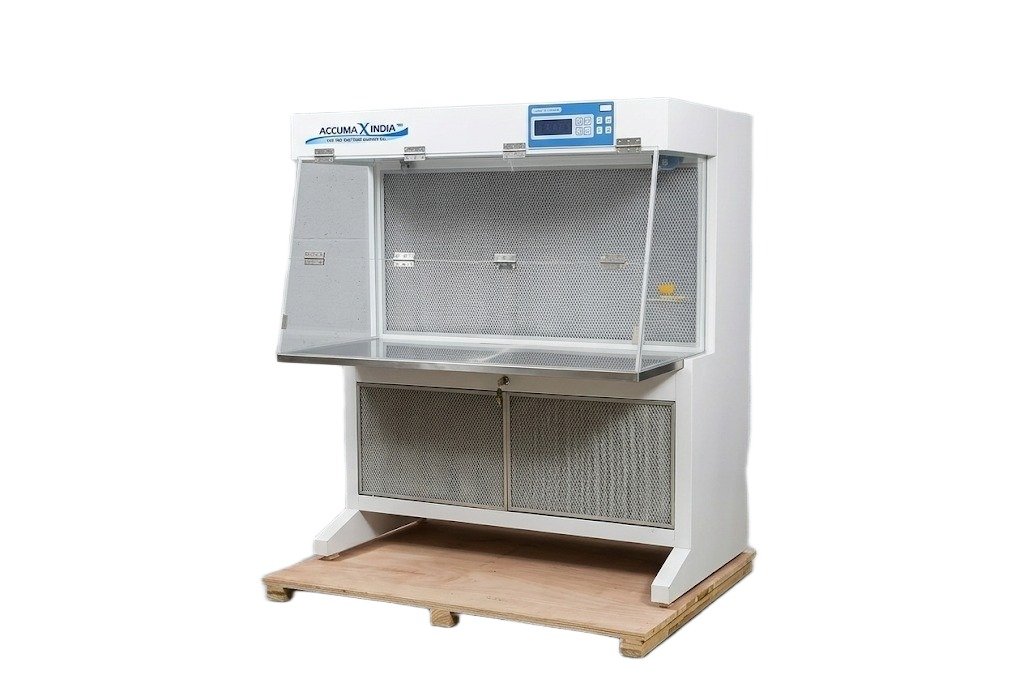

Horizontal Laminar Air Flow System
Horizontal Laminar Air Flow Cabinets are specially engineered to create contamination-free working environments using highly efficient HEPA filtered horizontal airflow systems.
These cabinets maintain sterile airflow across the working area and protect sensitive samples and laboratory processes from airborne contamination.
Accumax India Horizontal Laminar Air Flow systems are widely used in pharmaceutical industries, microbiology laboratories, biotechnology facilities, electronics manufacturing, and research centres.
Technical Details
Product Specifications
MOC
Wooden Laminated/Mild Steel Powder Coated/Stainless Steel
WxDxH
600x600x600mm,900x600x600mm,1200x600x600mm, 1800x600x600mm
Prefilter
Washable Prefilter Down To 10 Microns, Particulate At An Efficiency Of 90% Duly Tested
HEPA Filter
With 0.3 Microns Particulate Of 99.99% Efficiency And Dop Tested, Frame Of Aluminium, Microfiber Glass Media Epoxy Sealed, Non Washable
Class
100
Air Flow
Laminar Horizontal Flow
Motor Blower Assy
Dynamically Balanced ¼ HP
Noise Level
Minimum
Front Door
Folding Transparent Acrylic (Polycarbonate Optional)
Sides
Transparent
Working Bench
Stainless Steel
Illumination
Fluorescent Light
Germicidal Activity
U V TUBE
Air Pressure
Static Manometer / Magnahelic Gauge (Option)
Electric Utility
Power Socket
Vacuum/Gas Facility
Stop Cock
Electric Supply
Work On 220v AC 1 Phase
Features
Key Features
- Horizontal laminar clean airflow
- High efficiency HEPA filtration
- Low noise motor blower assembly
- UV germicidal tube support
- Contamination-free sterile workspace
- Durable stainless steel construction
- Easy maintenance and cleaning
Applications
Industry Applications
- Pharmaceutical laboratories
- Microbiology research labs
- Electronics assembly
- Medical research centres
- Food processing industry
- Biotechnology facilities
- Cleanroom environments
