Cleanroom Equipment

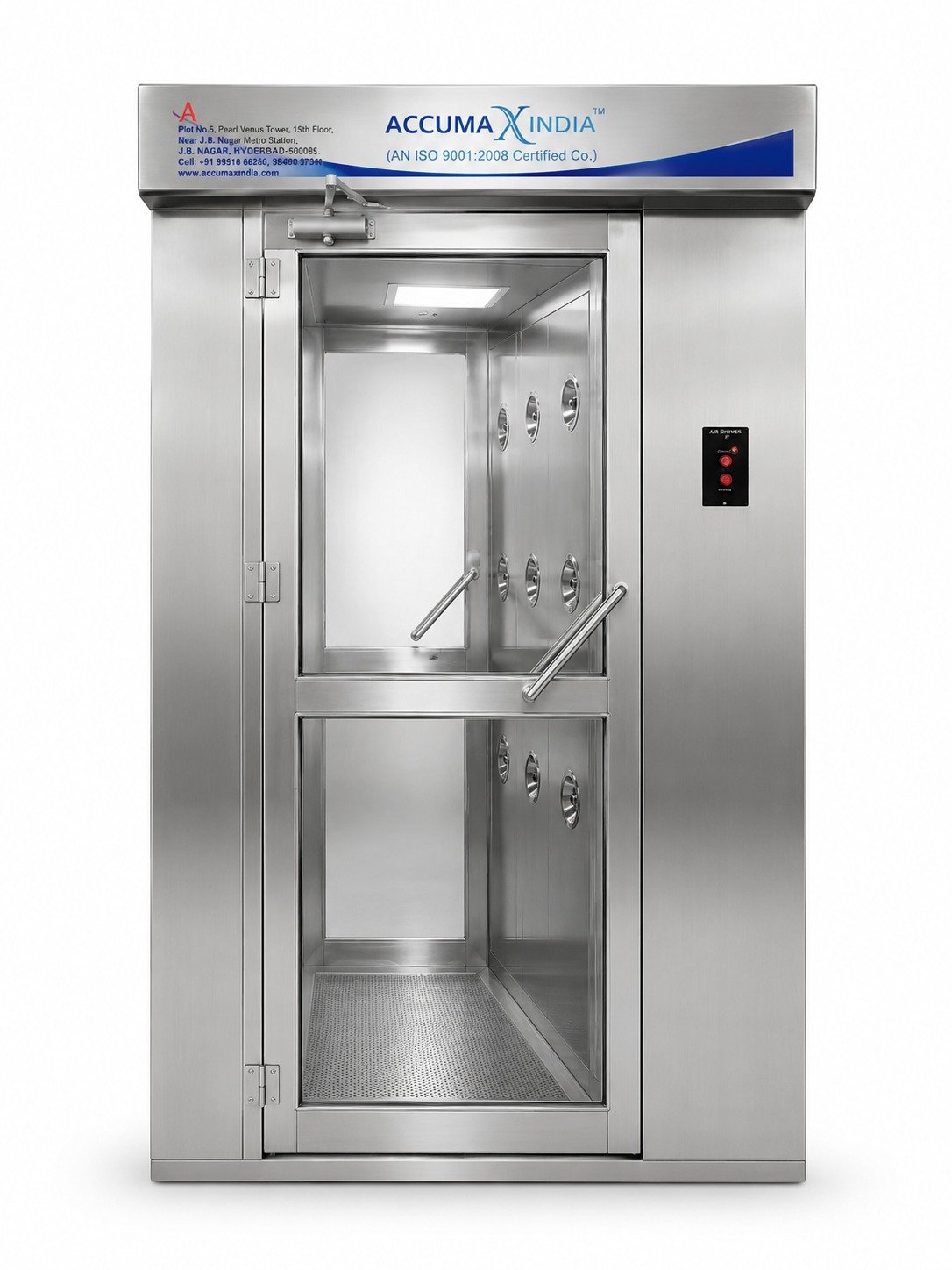

Straight Entry
Straight Entry Air Shower systems are designed to minimize
contamination by removing dust particles from personnel before
entering cleanroom environments.
Product Overview
High-performance contamination control system
Accumax India Straight Entry Air Shower units are engineered with precision to maintain cleanroom integrity and reduce contamination risks.
Manufactured using premium grade stainless steel and advanced HEPA filtration technology, our air shower systems deliver reliable performance and long-term durability.
Technical Details
Product Specifications
Dimensions
WxDxH: 900x1000x2000 mm (Inner Area)
WxDxH: 1400x1075x2150 mm (Outer Area) Or Customized
2
MOC Galvanized Iron Powder Coated / Stainless Steel 304
3
Blower Assembly
4
Motor Make Eyaani
5
Nozzles Made Of Stainless Steel Rotating And Adjustable Fixed Either Side Of Wall And Top Ceiling Velocity 70 Meters/Sec
6
Blower CFM 25-30 Meters/Sec
7
Face Velocity 20-22 Meters/Sec (3937-4330 FPM)
8
Air Flow 20-22 Meters/Sec (3937-4330 FPM)
9
Class 10000
10
Interlocking of Doors Interlocking Facility Of Doors, One Door Lock Automatically When Other Is Opened With Electromagnetic Lock, With Timer Setting
11
Flooring Aluminium Checker Sheet Anti Skid Or Stainless Steel
12
Door Frame Made Of Stainless Steel / Galvanized Iron Powder Coated Interlocking Facility, Half Toughened Glass
13
Hingle, handle Make Harrison/Godrej Or Equivalent
14
Light LED
15
Prefilter Washable Prefilter Down To 10 Microns, Particulate At An Efficiency Of 90% Duly Tested
16
Hepa Filters With 0.3 Microns Particulate Of 99.978?ficiency And DOP Tested, Frame Of Aluminium, Microfiber Glass Media Epoxy Sealed, Non Washable
17
Operations Automatic Actuation Operation And Adjustable Timer Trough Microprocessor Based Controller
18
Noise Level Less Than 75 Db
19
Safety Emergency Switch In Chamber
20
Electric Supply Work On 220v AC 1 Phase Or 3 Phase (To Specify)
Features
Key Features
- High efficiency HEPA filtration system
- Microprocessor based control panel
- Automatic sensor-based operation
- Stainless steel durable construction
- Low noise and energy efficient performance
- Emergency stop and safety interlocking
Applications
Industry Applications
- Pharmaceutical industries
- Electronics manufacturing units
- Food processing facilities
- Research laboratories
- Biotechnology industries
- Cleanroom environments
