Cleanroom Equipment

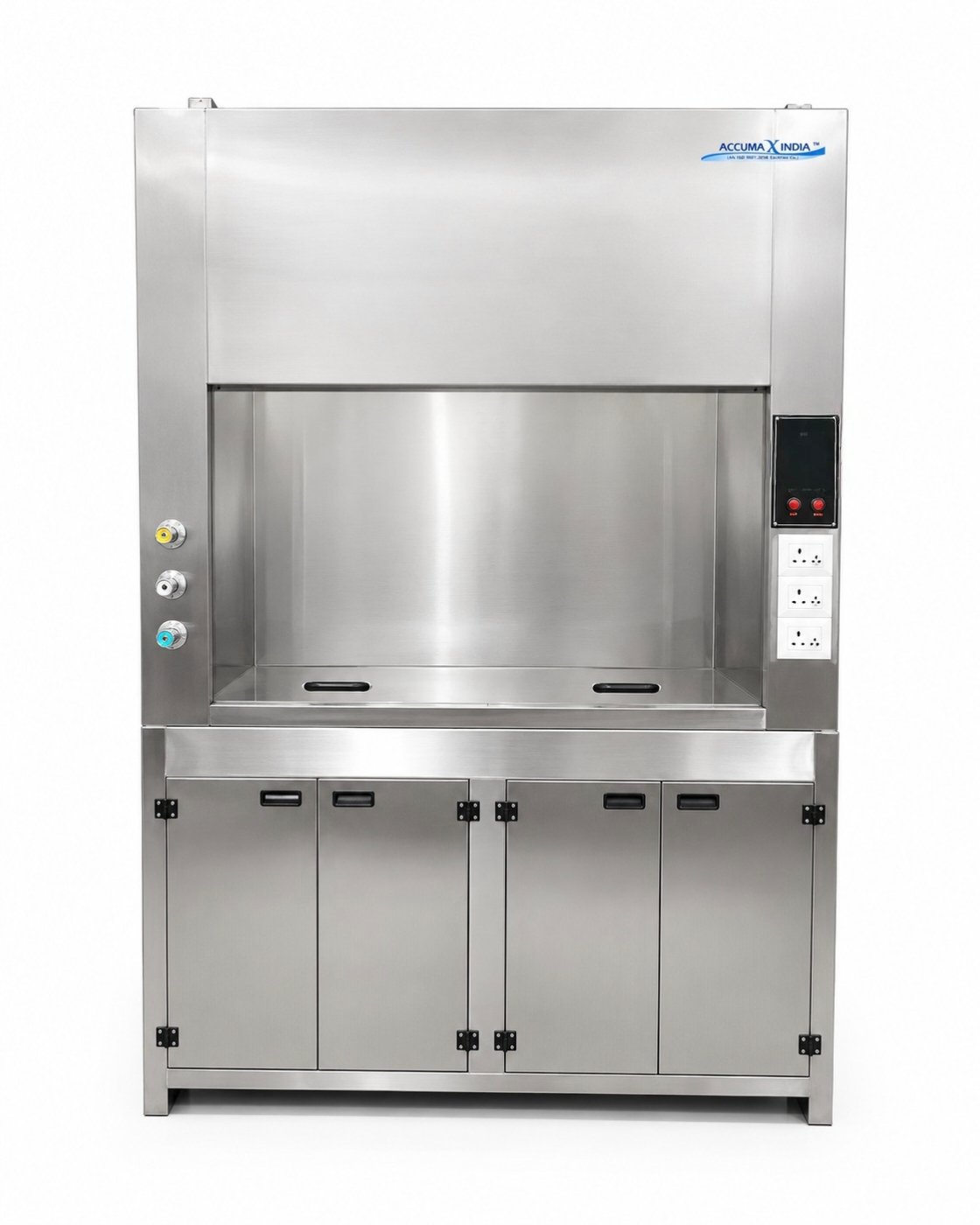

Stainless Steel Fume Hood
Primary function of a fume hood is to provide a contamination-free work space for carrying out tests. A fume hood is a specially designed device made to limit exposure to harmful fumes, dust, smoke & mist developed during chemical testing. We are fume hood manufacturers and suppliers in India and we have been making these fume chambers for over 25 years and have successfully installed these units in various government as well as private organizations.Accumax India has a long user list all over India and we confidently say that we are one of fume hood manufacturing companies in India.
Product Overview
Reliable contamination control solution
The Stainless Steel Fume Hood is designed to provide a safe and contamination-free working environment in laboratories, research centers, pharmaceutical units, and industrial facilities. Manufactured using high-quality stainless steel, it offers excellent corrosion resistance, durability, and easy maintenance. The fume hood effectively removes harmful fumes, vapors, smoke, and chemical gases generated during laboratory processes, ensuring operator safety and improved workplace hygiene.
Technical Details
Product Specifications
MOC
Galvanized Iron Powder Coated/Stainless Steel/Polypropylene.
Type
Floor Standing Model / Table Top Model
Face Velocity
90 - 100 FPM /0.5 Mts. Per. Sec. (Average At 12" Sash Opening Fume Hood)
Air Volume
1000 CFM (Designed For Full Door Opening)
Air Flow type
Standard
Cabinet
Electro Galvanised Sheet With Epoxy Powder Coat Finish / Stainless Steel / Polypropylene With Smooth Finish.
Bottom Arrangements
Cabinets, With Cupboard With One Horizontal Partition And Shutters. Cupboards Will Be Provided With Branded Locking Arrangements And Aesthetic Handles Finished With Epoxy Powder Coating.
Baffles
Aerodynamic Shape Fully Made Of 3mm FRP.
Work Top
Easy To Clean And Chemical And Heat Resistant Black Granite 18mm.
Sash (Shutter)
Single, Vertical Sliding, Concealed Type Door. Balanced With Counter Weight, Sash Weights, Wire Etc., Provided With 5mm Thick Glass Window With Steel Frame.
Blower Type
Blower Type
Powered by
1 HP 1440 RPM Single Phase. Blower Is Sufficient For Maximum Distance Of 10 Mtrs. For Requirement More Than 10 Meters 3 HP Capacity Blower Is Required At Extra Cost.
Coupling
Direct
Balancing
Dynamically Balanced
Air Volume
1000 CFM
Static Pressure
2' W.G.
Casing
Casing With FRP Lining
Impeller
Fully Moulded PP Impeller
Exhaust Duct
PVC/FRP Duct Pipe Of 200 mm Dia With Suitable Elbow For A Length Of 2 Meters, Will Be Supplied With The System. Will Include Exhaust Chimney With Weather Cowl, Bends Flanges, Brackets Etc. Additional Length Of Ducting Will Be Supplied At Extra Cost.
Electrical Arrangements
2 Nos. 15/5 Amps 3 Pin Socket Cum Control Switch.
Illumination
By 4 Feet Tube Light.
Features
Key Features
- High-grade stainless steel construction for corrosion resistance and long service life.
- Efficient airflow system for safe removal of toxic fumes and vapors.
- Smooth and easy-to-clean surface for hygienic laboratory operations.
- Durable and chemical-resistant body suitable for harsh environments
- Available in customized sizes and configurations as per laboratory requirements.
Applications
Industry Applications
- Pharmaceutical Laboratories
- Chemical Industries
- Research & Development Laboratories
- Educational & Institutional Labs
- Biotechnology and Healthcare Facilities
