Cleanroom Equipment
Vertical

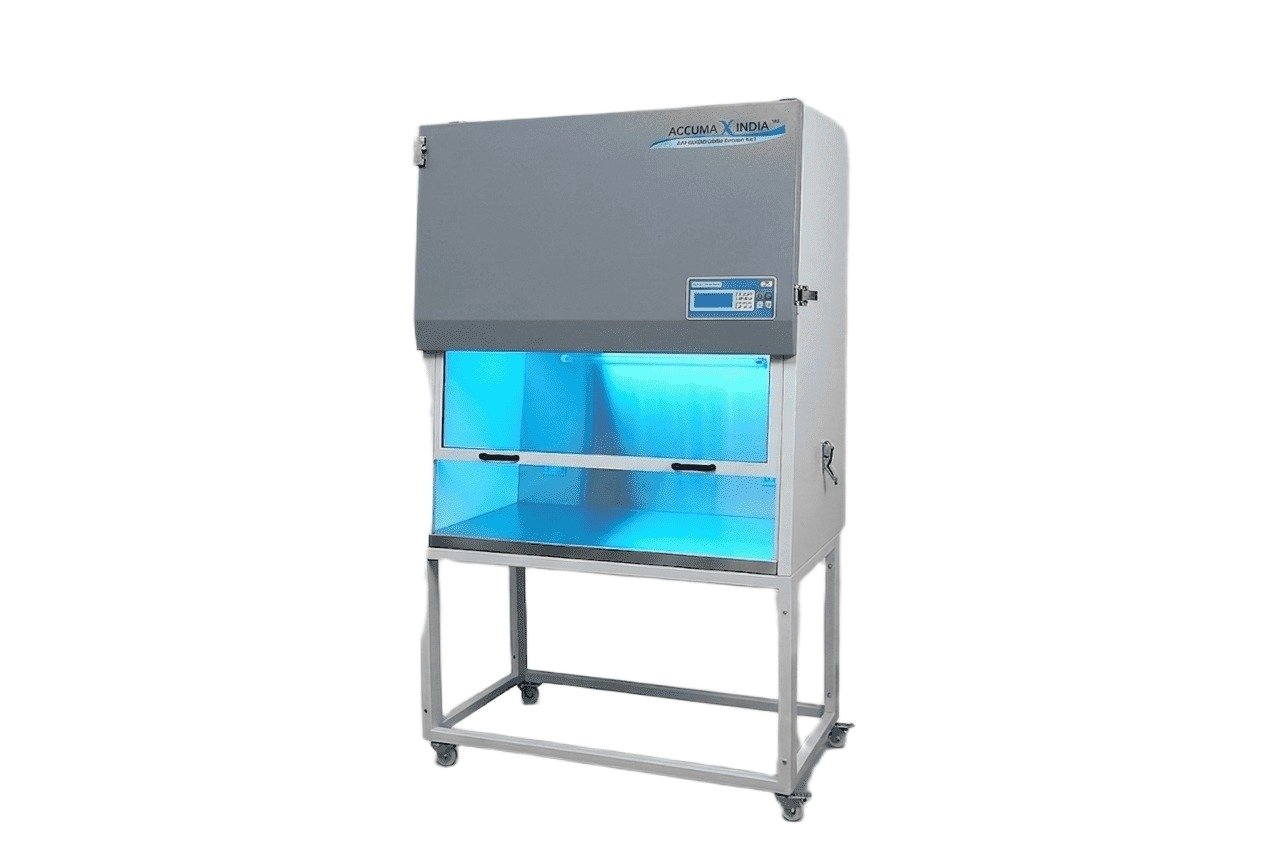

Vertical Laminar Air Flow Cabinets are designed
to provide contamination-free clean air for
laboratories and controlled cleanroom applications.
Product Overview
Vertical Laminar Air Flow System
Vertical Laminar Air Flow Cabinets consist of stainless steel cabinets, HEPA filters, pre-filters, blower assemblies, UV lamps, fluorescent lamps, and working stations that together maintain sterile working conditions.
Air passes through highly efficient HEPA filters and creates a continuous vertical laminar airflow that removes airborne contaminants and protects sensitive laboratory materials from contamination.
These systems are widely used in pharmaceutical, microbiology, biotechnology, electronics, medical research, and cleanroom industries where sterile environments are critical.
Technical Details
Product Specifications
MOC
Mild Steel Powder Coated/Stainless Steel
Working Area WxDxH
600x600x600mm,900x600x600mm,1200x600x600mm, 1800x600x600mm
Prefilter
Washable Prefilter Down To 10 Microns, Particulate At An Efficiency Of 90% Duly Tested
HEPA Filter
With 0.3 Microns Particulate Of 99.99% Efficiency And DOP Tested, Frame Of Aluminium, Microfiber Glass Media Epoxy Sealed, Non Washable
Class
100
Air Flow
Laminar Horizontal Airflow
Motor Blower Assy
Dynamically Balanced ¼ HP
Noise Level
Minimum
Front Door
Folding Transparent Acrylic (Polycarbonate Optional)
Sides
Transparent
Working Bench
Stainless Steel
Illumination
Fluorescent Light
Germicidal Activity
U V Tube
Air Pressure
Static Manometer / Magnahelic Gauge (Option)
Electric Utility
Power Socket
Vacuum/Gas Facility
Stop Cock
Electric Supply
Work On 220v AC 1 Phase
Features
Key Features
- High efficiency HEPA filtration
- UV germicidal tube support
- Low noise motor blower assembly
- Transparent plexiglass side panels
- Contamination-free working area
- Durable stainless steel construction
- Class 100 clean air environment
Applications
Industry Applications
- Pharmaceutical laboratories
- Microbiology research labs
- Electronics assembly
- Medical research centres
- Food processing industry
- Biotechnology facilities
- Cleanroom environments
