Cleanroom Equipment
Class II Type B1/B2
Biosafety Cabinet Class II Type B1/B2 systems
are engineered for superior biological safety,
contamination control, and laboratory protection
in critical research environments.
Product Overview

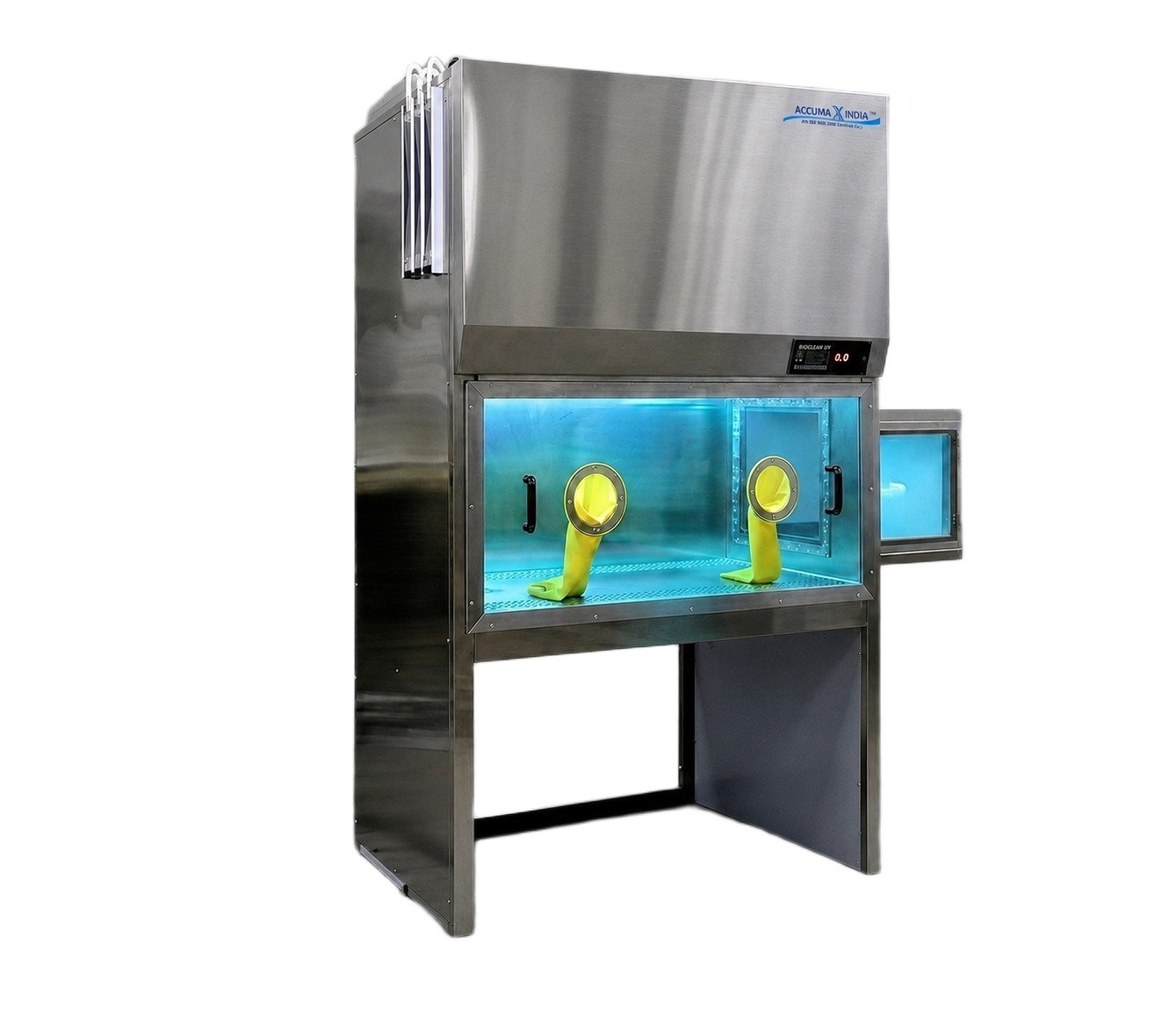

Biosafety Cabinet Class II Type B1/B2
Accumax India Biosafety Cabinets Class II Type B1/B2 are designed for handling hazardous biological agents and sensitive laboratory operations requiring advanced contamination control systems.
These cabinets use vertical laminar airflow combined with dedicated exhaust systems and HEPA filtration technology to ensure operator, product, and environmental protection during laboratory processes.
Biosafety Cabinets Class II Type B1/B2 are widely used in microbiology laboratories, pharmaceutical industries, biotechnology research centres, pathology labs, and medical testing facilities.
Technical Details
Product Specifications
Cleanliness
Class 100
Velocity
90 Feet / Min±20
Noise Level
65 Decibels ± 5% On A Scale
Hepa Filter
Media Glass Fiber Paper-Imported
Particle Retention
0.1 Micron
Efficiency
99.999 %
Pressure Drop
23 mm Wg
Size-At Exhaust
6”x 6” x 6”
Pre-Filter
Non Woven-Synthetic Polyester
Particle Retention
10 -15 Micron
Efficiency
90%
Pressure Drop
6 mm Wg
Blower Assembly
By 1 No ¼ Hp, Single Phase, 1440 RPM Motor, directly coupled with a pair of Aluminum Centrifugal Impeller.Capacity 1000 CFM Pressure 30 mm Wg
Exhaust Assembly
By Motor of ¼ HP, Single Phase1440 RPM Motor, Directly Coupled With A Aluminum Impeller.Capacity -300 CFM, Ducting By PVC Pipe With 1 No ¼ HP Motor Blower With Rain Guard-Dia –150 mm
Ultra Violet Lamp
3 Feet, 30 Watt – Philips/Osram Make
Illumination
4 Feet 40 Watt-With Diffusers
Standard Accessories
Pressure Manometer, Additional Power Point Gas Inlet Nozzle, And Floor Leveling Screws, Wire Chord
Power Supply
220 V, Single Phase, 50 Hz
Working Area
W 900 x D 600 x H 600mm
W 1200 x D 600 x H 600mm
W 1800 x D 600 x H 600mm
Features
Key Features
- Advanced biosafety protection system
- Dedicated exhaust airflow technology
- High efficiency HEPA filtration
- Digital airflow monitoring system
- Low noise laboratory operation
- UV germicidal sterilization
- Enhanced operator and environmental protection
Applications
Industry Applications
- Microbiology laboratories
- Pharmaceutical research
- Biotechnology industries
- Clinical laboratories
- Medical research centres
- Pathology laboratories
- Advanced biological testing environments
